Install Jellyfin in Docker

Posted on 2024-02-11 In tech , NAS , Docker Word count in article: 1.6k Reading time ≈ 6 mins.

Preface

Jellyfin is an open-source media server. Here is my way of using Jellyfin: download anime using qBittorrent, start Jellyfin, and then watch the anime on iPad through the client.

Previously, I have installed the portable version of Jellyfin on Windows because a Linux virtual machine can not utilize the graphics card for hardware transcoding. However, I discovered that the Android and iOS clients support most codecs, eliminating the need for server-side transcoding. Since I am already familiar with Jellyfin’s usage and configuration, I decided to migrate it to Docker.

Although Jellyfin itself is cross-platform, its configuration is still OS-dependent, especially when moving from Windows to Docker. Despite the availability of a third-party script, I chose to reconfigure it for safety, which does not require much effort.

This article mainly talks about how to install Jellyfin using Docker, along with any issues encountered and their solutions.

Install Jellyfin

Firstly, create two volumes:

1 2	docker volume create jellyfin-config docker volume create jellyfin-cache

Docker Compose:

version: '3'

services:
  jellyfin:
    image: jellyfin/jellyfin:10.8.13-1
    container_name: jellyfin
    network_mode: bridge
    ports:
      - 58096:8096
      - 58920:8920
    volumes:
      - jellyfin-config:/config
      - jellyfin-cache:/cache
      - /mnt/hgfs/jellyfin-media:/media:ro
      - /opt/docker/jellyfin_ssl/jellyfin.pfx:/ssl/jellyfin.pfx:ro
    restart: unless-stopped
    environment:
      - TZ=Asia/Shanghai

volumes:
  jellyfin-config:
    external: true
  jellyfin-cache:
    external: true

Specify the image version; 10.8.13 is the latest stable version, and subsequent versions have the term unstable, so it’s best not to use latest.
8096 is the default HTTP port, and 8920 is the default HTTPS port.

Jellyfin uses the following paths to store data:

Directory	Description	Path
Data Directory	Stores all Jellyfin data, usually referenced by other directories	Specified by ENV `JELLYFIN_DATA_DIR`
Configuration Directory	Stores configuration files	Specified by ENV `JELLYFIN_CONFIG_DIR`; if not specified, it uses `<Data Directory>/config`
Cache Directory	Stores server cache	Specified by ENV `JELLYFIN_CACHE_DIR`; if not specified, it uses `<Data Directory>/cache`
Log Directory	Stores log files	Specified by ENV `JELLYFIN_LOG_DIR`; if not specified, it uses `<Data Directory>/log`

These environment variables are specified in the Dockerfile：

ENV DOTNET_SYSTEM_GLOBALIZATION_INVARIANT=1 LC_ALL=en_US.UTF-8 LANG=en_US.UTF-8 LANGUAGE=en_US:en JELLYFIN_DATA_DIR=/config JELLYFIN_CACHE_DIR=/cache JELLYFIN_CONFIG_DIR=/config/config JELLYFIN_LOG_DIR=/config/log JELLYFIN_WEB_DIR=/jellyfin/jellyfin-web JELLYFIN_FFMPEG=/usr/lib/jellyfin-ffmpeg/ffmpeg

Therefore, /config and /cache contain all data of the Jellyfin server, and these directories are mounted to jellyfin-config and jellyfin-cache, respectively.

/mnt/hgfs/jellyfin-media:/media:ro: Mount media files from the local machine into Docker, the path can be arbitrary.
/opt/docker/jellyfin_ssl/jellyfin.pfx: Used to configure the SSL certificate for the server, which will be discussed later.
TZ=Asia/Shanghai: Set the time zone to make the log time consistent with the local machine.

Jellyfin Configuration

Since it’s a fresh installation, all configurations need to be set up again. Here are some key points.

Server | Users

Disable transcoding: Even if the client doesn’t support the codec, server-side software decoding is not allowed, as it can lead to high pressure on the system.

Remove the following two options for each user:

For the option ‘Allow video playback that requires conversion without re-encoding’, many articles recommend disabling it, but it seems to have no impact, so it can be left enabled.

Advanced | Networking

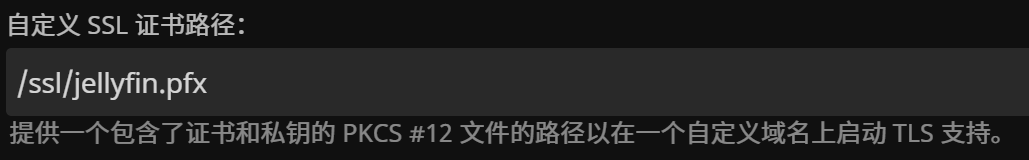

Select the mounted jellyfin.pfx file as the SSL certificate (how to generate this file is explained later):

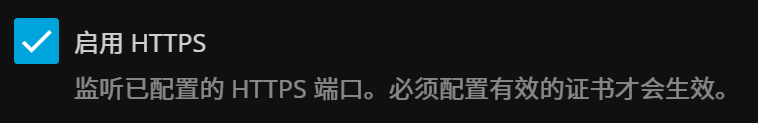

Check ‘Enable HTTPS’ and restart the container.

There’s no need to enable ‘Force HTTPS’ because the firewall will only allow devices on the local network to access the HTTPS port; the local machine can still access Jellyfin via HTTP.

SSL Certificate

Firstly, you need the private key jellyfin-priv-key.key and the certificate jellyfin.crt (refer to the previous article).

Then, use the following command to generate the .pfx file:

1	openssl pkcs12 -export -out jellyfin.pfx -inkey jellyfin-priv-key.key -in jellyfin.crt -passout pass:

Local Network Settings

Here is my network topology:

Windows host with a Linux virtual machine installed by VMware, and Docker runs on this virtual machine.

The host and other devices share the home network.

Previously, when running Jellyfin on Windows, I allowed Jellyfin’s direct access to the home network. That is, the firewall rules were authorized for the Jellyfin executable rather than a specific port.

Now, with Docker, the following changes are made:

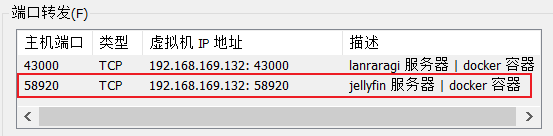

Add a NAT mapping for the virtual machine, mapping Linux’s 58920 to the host’s 58920 port.
Add a firewall inbound rule: 58920/tcp for the private network.
Reconnect all client devices to the new server.

Jellyfin on Windows had port 58920 open, and after switching to the Docker version, it still uses the same port. We can access the web client through https://hostIP:58920 in a browser. This ‘tricks’ Google Password Manager in some sense, allowing me to directly use the previous account and password.

Some Bugs

Font Issue 1

After creating the container, enter the container and execute the following command:

1	apt update && apt install fonts-noto-cjk-extra

Then restart the container.

Otherwise, Chinese characters on the media library cover images appear as squares.

Font Issue 2

When playing MKV files containing ASS subtitles, the subtitles appear as squares. The issue lies in the absence of the font.

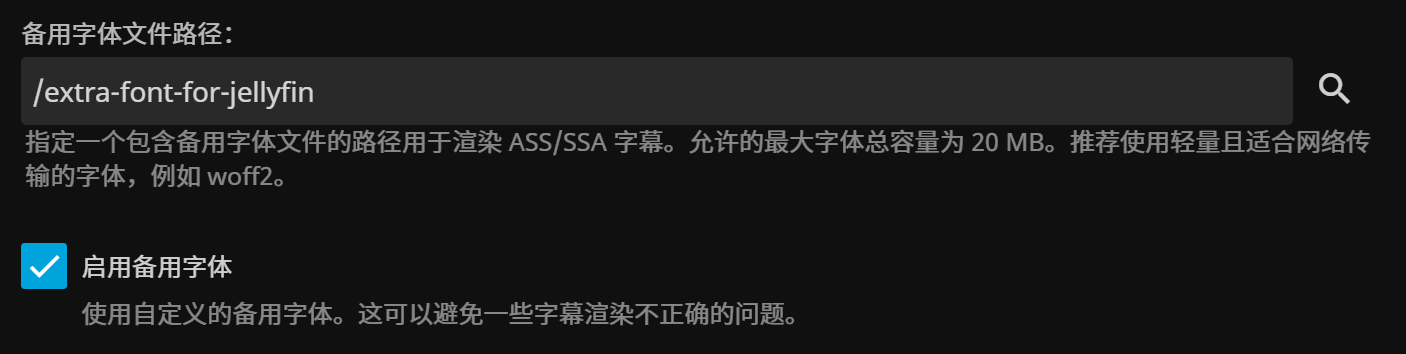

Navigate to ‘Server | Playback’ and set the ‘Alternate Font File Path’, then enable ‘Use Alternate Font’.

Place a woff font file in this directory.

Take Microsoft YaHei font, which comes with the Windows operating system, as an example:

Navigate to C:\Windows\Fonts, search for yahei, and copy the font, resulting in three ttc files. We need to convert the ttc files to woff. Use the following Python code:

1	pip install fonttools

from fontTools.ttLib import TTFont

def convert_ttf_to_woff(ttf_path, woff_path):
    font = TTFont(ttf_path, fontNumber=0)
    font.save(woff_path, "woff")

ttf_file = r"./msyh.ttc"
woff_file = r"./msyh.woff"

convert_ttf_to_woff(ttf_file, woff_file)

Symbolic Links

On Windows, we can create links using the mklink command. When running Jellyfin on Windows, to prevent Jellyfin from modifying the media directory, I used the walk_while_link function to create symbolic links for each video file. However, shared folders in virtual machines can be set to read-only, and volumes can also be set to read-only, so there’s no need to do this in Docker.

Moreover, creating symbolic links this way causes videos to be unplayable, and Jellyfin reports errors when reading media data. I suspect this is due to symbolic links because many articles about NAS use hard links rather than symbolic links. However, I don’t prefer using hard links, especially on Windows.

Creating symbolic links for folders is still possible. For example, if the shared folder is jellyfin-docker-media, you can create symbolic links for the films and animes folders in other paths, putting them all under jellyfin-docker-media. This essentially adds an extra layer of abstraction and reduces the number of shared folders for the virtual machine.

In fact, this is what I did. The /mnt/hgfs/jellyfin-media in Docker-compose is the host’s jellyfin-docker-media shared folder.

Docker Knowledge

By installing Jellyfin, I deepened my understanding of Docker through practical experiences.

EXPOSE

I always thought that using the EXPOSE keyword in the Dockerfile was necessary for mapping ports when starting a container. However, that’s not the case.

The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime. You can specify whether the port listens on TCP or UDP, and the default is TCP if you don’t specify a protocol.

The EXPOSE instruction doesn’t actually publish the port. It functions as a type of documentation between the person who builds the image and the person who runs the container, about which ports are intended to be published. To publish the port when running the container, use the -p flag on docker run to publish and map one or more ports, or the -P flag to publish all exposed ports and map them to high-order ports.

These two paragraphs are excerpted from the official documentation. EXPOSE is merely a declarative instruction, and it’s the -p option that truly maps the container’s ports. This mapping can be done freely, without any restrictions.

Therefore, the approach I took in ‘Deploying Nginx in Docker and Configuring SSL Certificate for Local Network’ is meaningless. There’s no need to create a new image just for EXPOSE.

1 2	FROM nginx:1.24 EXPOSE 443

Cache Memory

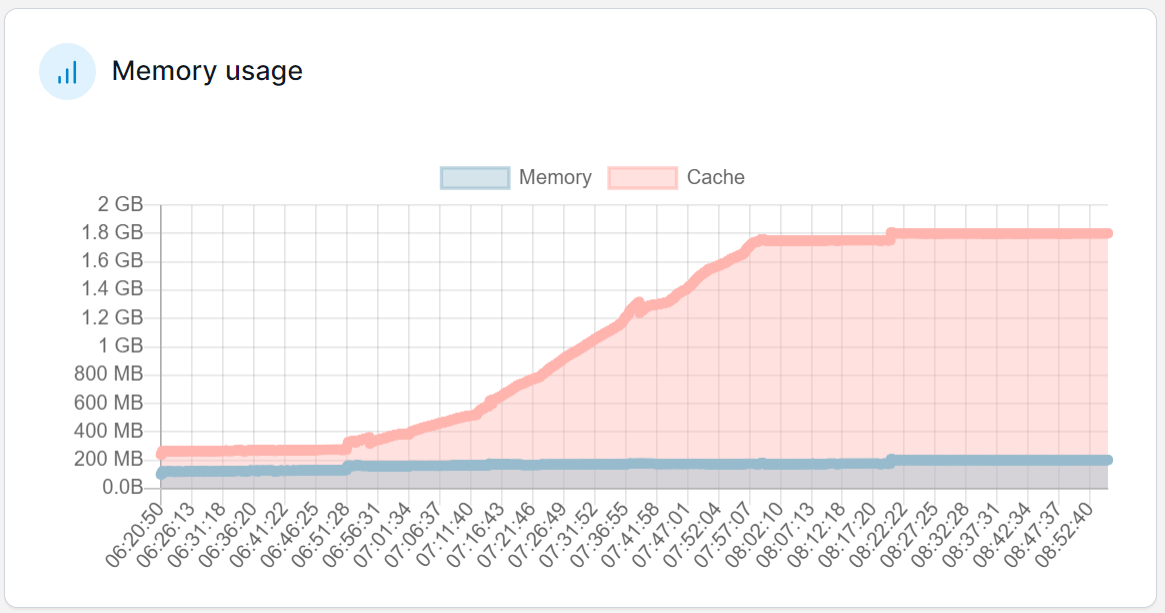

In Portainer statistics, you can see that memory usage is divided into ‘Memory’ and ‘Cache’. What do these two terms mean? Which one represents the current memory usage?

In simple words, ‘Memory’ represents the current memory usage, while ‘Cache’ represents memory that was previously used. Memory Cache is a term in Docker, and its value is equal to the value of Inactive(file) in /proc/meminfo.

Inactive(file) — The amount of file cache memory, in kibibytes, that is newly loaded from the disk, or is a candidate for reclaiming.
